How To Clean The Water Dispenser On A Whirlpool Fridge

Dispensing ice cubes into full cups of dark chocolate-brown liquid is the well-nigh fool-proof style of making a mess effectually the water and ice dispenser on the refrigerator. When the betoken is reached where some cleaning is due, 1 quickly realizes that this is harder than information technology looks. The area with the well-nigh splatters is not very accessible. Time to take the thing apart …

Tools needed: ane apartment-caput screwdriver

Time needed: 45 minutes

Make certain to disconnect the ability cord earlier you first. If you get electrocuted, don't blame this blog post.

Not made for like shooting fish in a barrel cleaning

1. Remove the calorie-free bulb

Carefully unscrew the light bulb and put it in a condom place.

Remove the light bulb

1: Remove the light bulb

ii. Remove front panel encompass

The first step is to remove the front console that surrounds the dispenser opening. The front end panel is snapped on a frame that is screwed onto the freezer door. In order to remove information technology, push down the bottom of the panel from inside the opening, while pulling one side away from the door. Do non use excessive force. If pushed downward far plenty, it volition come off without breaking.

Push down the bottom while pulling on the side

Push downwards the lesser while pulling on the side

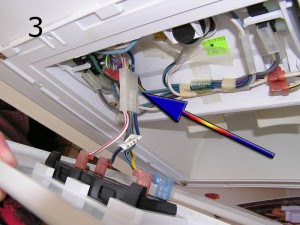

3. Disconnect the forepart panel cover

The panel is continued to a wiring harness with a single plug. Employ the screwdriver to unlock the connector and while gently pulling both ends autonomously. Hand the panel to your helper for cleaning.

Unlatch the plug with the screwdriver

iv. Remove switch assembly

By removing the panel cover, nosotros have non gained much in terms of admission to the upper section of the dispenser compartment. We need to likewise remove the function that holds the switch for the water dispenser and the wiring harness. It is held in place by two screws that demand to exist removed in the next step.

Unscrew the switch assembly

5. Unscrew leap and nozzle

The role that is now loose could be disconnected from the wiring harness, but this would crave that we damage the tape that holds the wires in place, and it is not actually necessary. The inside can be cleaned by holding it up as shown in the next moving picture. In order to remove the levers that trigger the water and the ice dispenser, there are 2 more than screws to accept off.

Unscrew spring and nozzle

half-dozen. Remove water lever

At present that the jump leaf is removed that holds both levers in place, start with the water dispenser lever by tilting it out and downwards, and sliding it around the water nozzle.

Remove water lever

seven. Remove door damper

Next, unclip the clear-plastic ice funnel from the ice lever. In order to remove the ice lever, the rubber boot of the water ice door damper must exist asunder.

Remove the door damper

eight. Remove ice lever

Now, open up the ice door and carefully feed the water ice lever around the door and the damper. This is equally far equally nosotros demand to go. Everything is now accessible and ready for cleaning.

: Ready for cleaning

Soak the plastic parts in a water-vinegar solution (1:1) to remove whatsoever lime that has built up. Clean the fridge with a wet sponge. Make certain to open the ice door and clean around the opening. When everything is make clean, showtime reassembling the parts in reverse order.

nine. Reinstall switch assembly

Make sure the elevation is aligned with the notches before fastening the screws, as shown below. Reconnect the wire to the panel cover, and press the encompass firmly into place. Make sure that no wires are pinched.

Make sure the top sits correctly
